Product Features
1. All wet parts of the pump are made of fluorine plastic. The cover, impeller, and shaft sleeve is a metal inserts with a fluorine plastic jacket, inlet & outlet are strengthened with cast steel.
2. Pump is wearing resistant, corrosion resistant, thermos table, non-aging, strong mechanical strength, running stable, advanced in structure, sealing reliable, easy to maintain, and long service life.
3. It works for highly corrosive mediums between -85°C~120°C (-121°F~248°F), such as arbitrary concentrations of vitriol, muriatic acid, hydrofluoric acid, nitric acid, aqua regia, strong base, a strong oxidant, organic solvent, reducing agent, etc.
4. Pump is widely used in many fields such as chemistry, pharmacy, petroleum, metallurgy, smelting, electricity, electroplating, dye, farm chemical, papermaking, food, spinning, and other industries.
SPECIFICATIONS
Applicable medium: Sulfuric acid, hydrochloric acid, brine, caustic soda, toluene, lye, etc.
Design: Long-life grease or oil bath lubrication.
Lining:PTFE,PFA,FEP,PE-UHMW.
Nominal Pressure: PN16.
Flange: DN standard or ASME B16.5 class 150, convex flange.
Temperature range:-20℃ to 150℃.
Certificate: ISO9001 certification, CE certification.

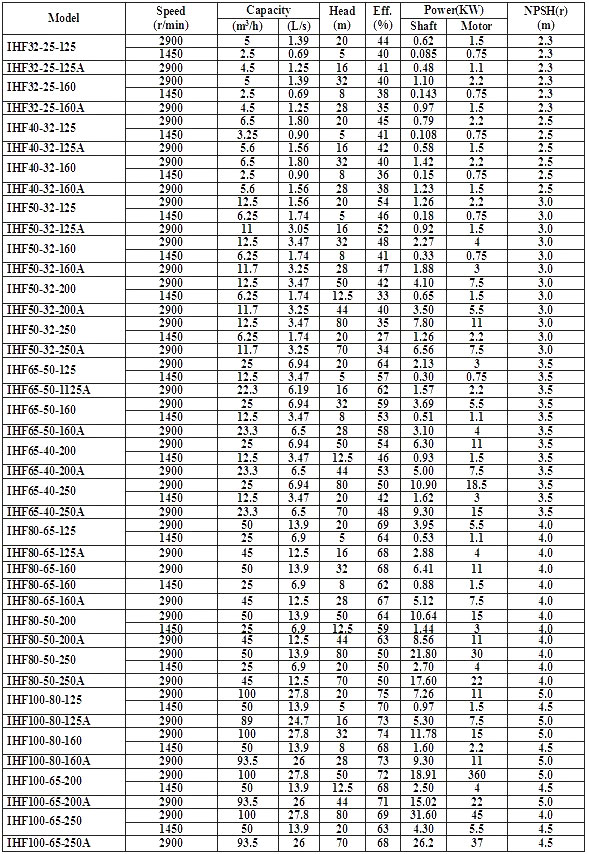

Performance data table
